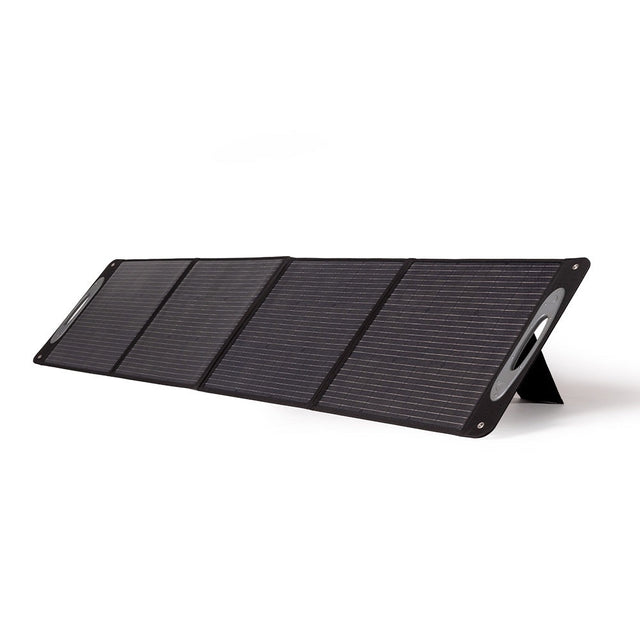

200W Waterproof Solar Panels by Grid Doctor for the 3300 & 2200 Solar Generator Systems

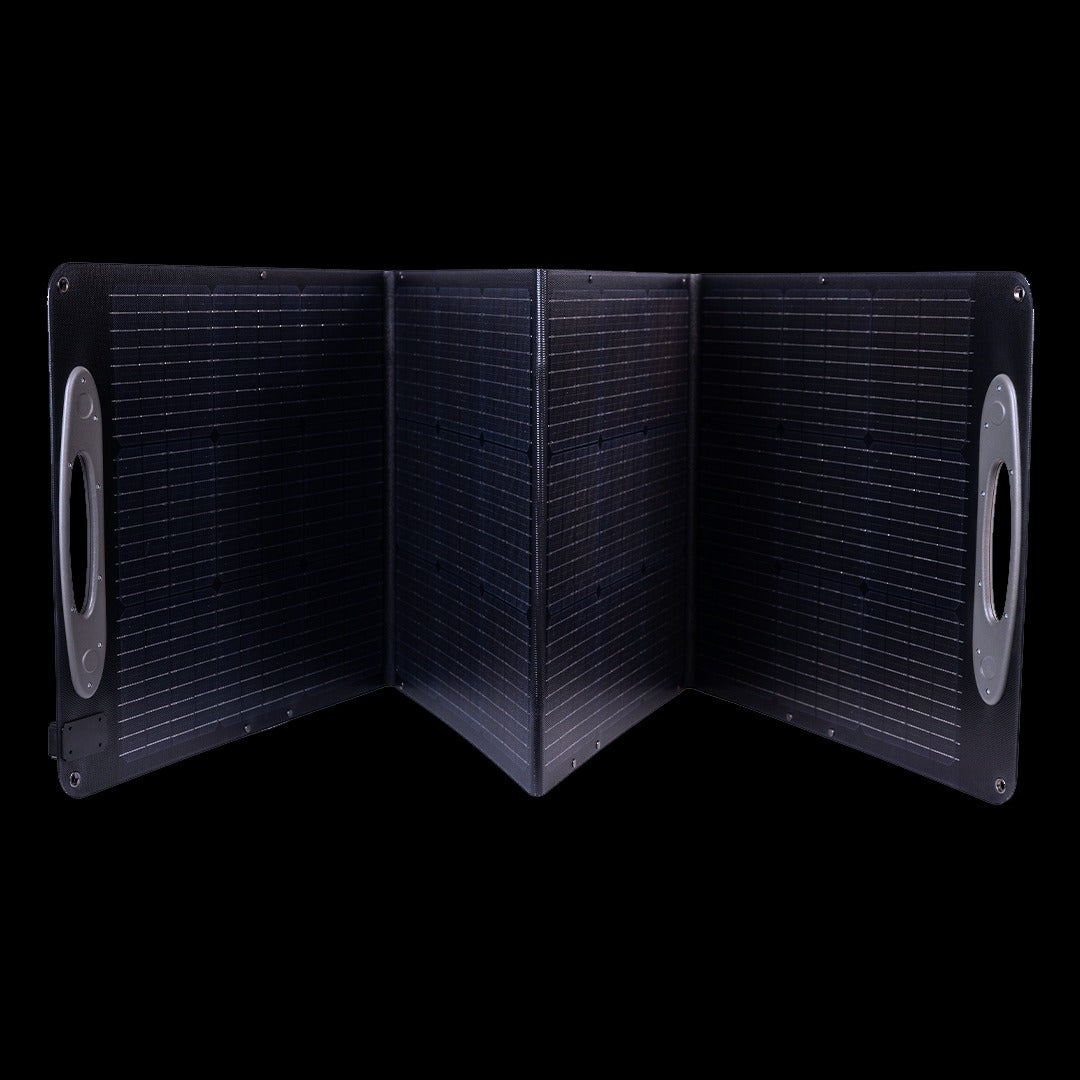

A fold-out 200W monocrystalline solar panel (≥22% efficient, IP68 waterproof) that recharges your Grid Doctor 3300 or 2200 anywhere the sun shines. Includes MC4 cables, a storage pouch, and leg stands.

$447.00
Free shipping over $149Ships same day by 3PMEMP protected
200 W
Output
≥22%
Cell Efficiency
IP68
Waterproof
200W Waterproof Solar Panels by Grid Doctor for the 3300 & 2200 Solar Generator Systems

Specifications

  • Rated Power: 200 W
  • Cells: Monocrystalline silicon (≥22% efficiency)
  • Waterproofing: IP68 rated
  • Operating Voltage: 21 V
  • Operating Current: 9.5 A
  • Open Circuit Voltage: 25 V
  • Short Circuit Current: 11.4 A
  • Interface: MC4 cables

Product Details

What's in the Box
  • (1) Grid Doctor 200W Waterproof Solar Panel (IP68)
  • MC4 interface cables

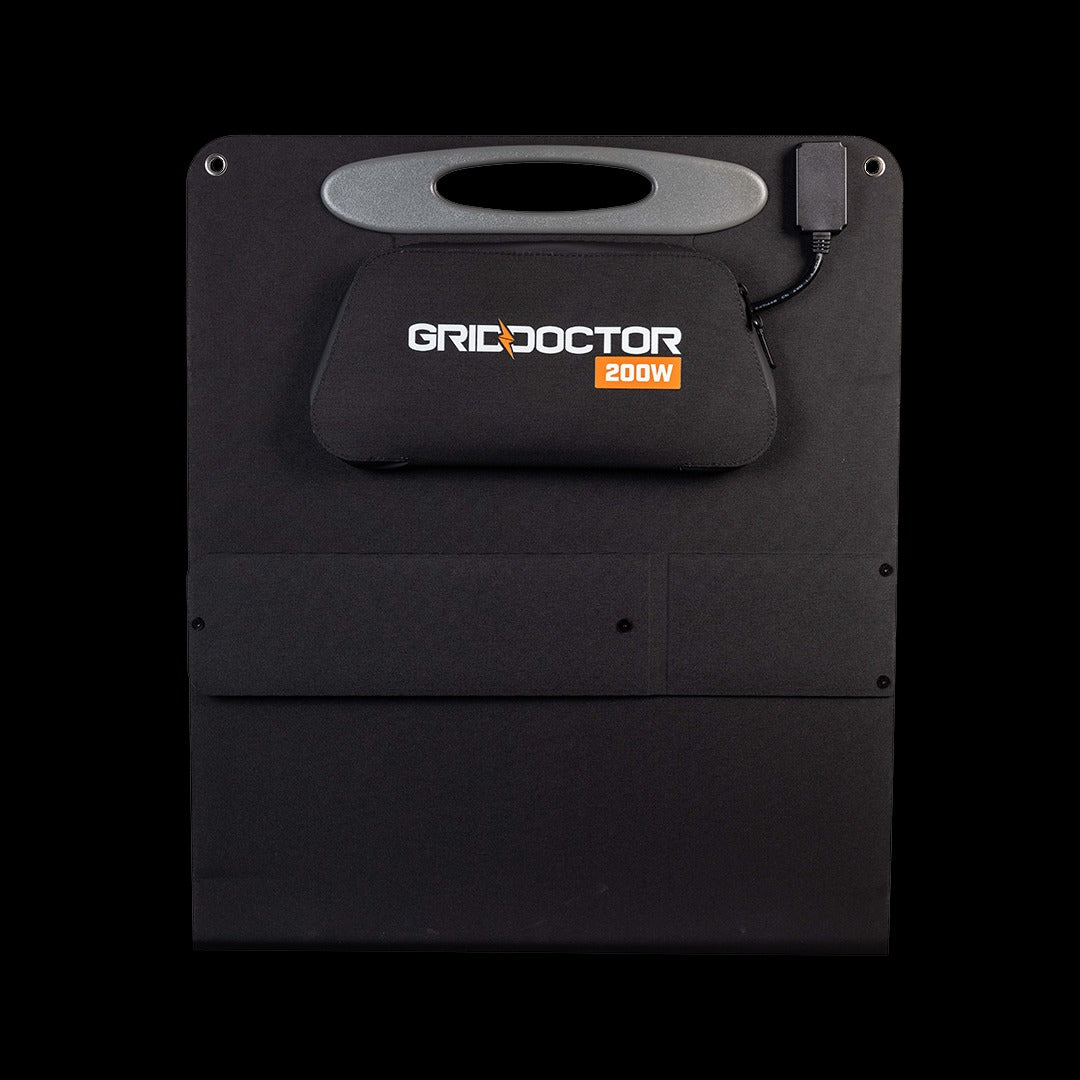

  • Weatherproof storage pouch

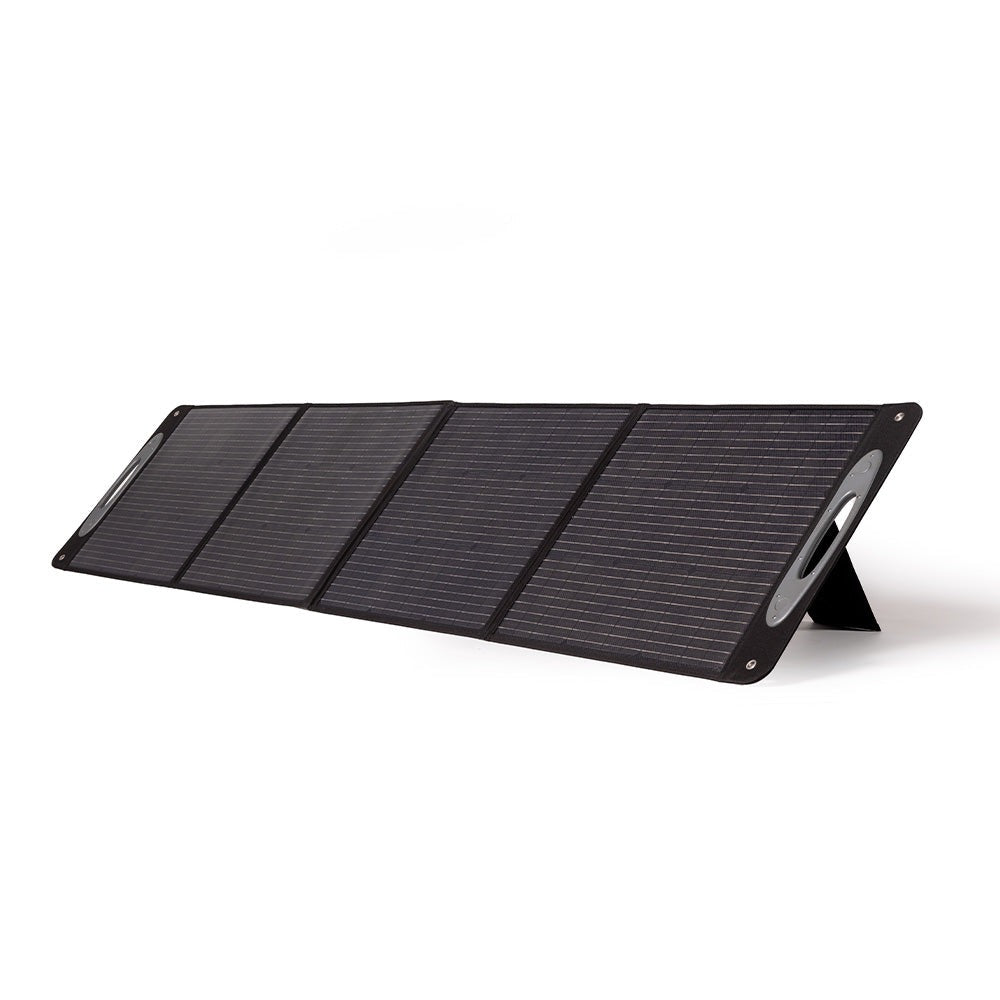

  • Collapsible leg stands and corner grommets
How to Use / Setup
  1. Unfold the panel and face it toward the sun.

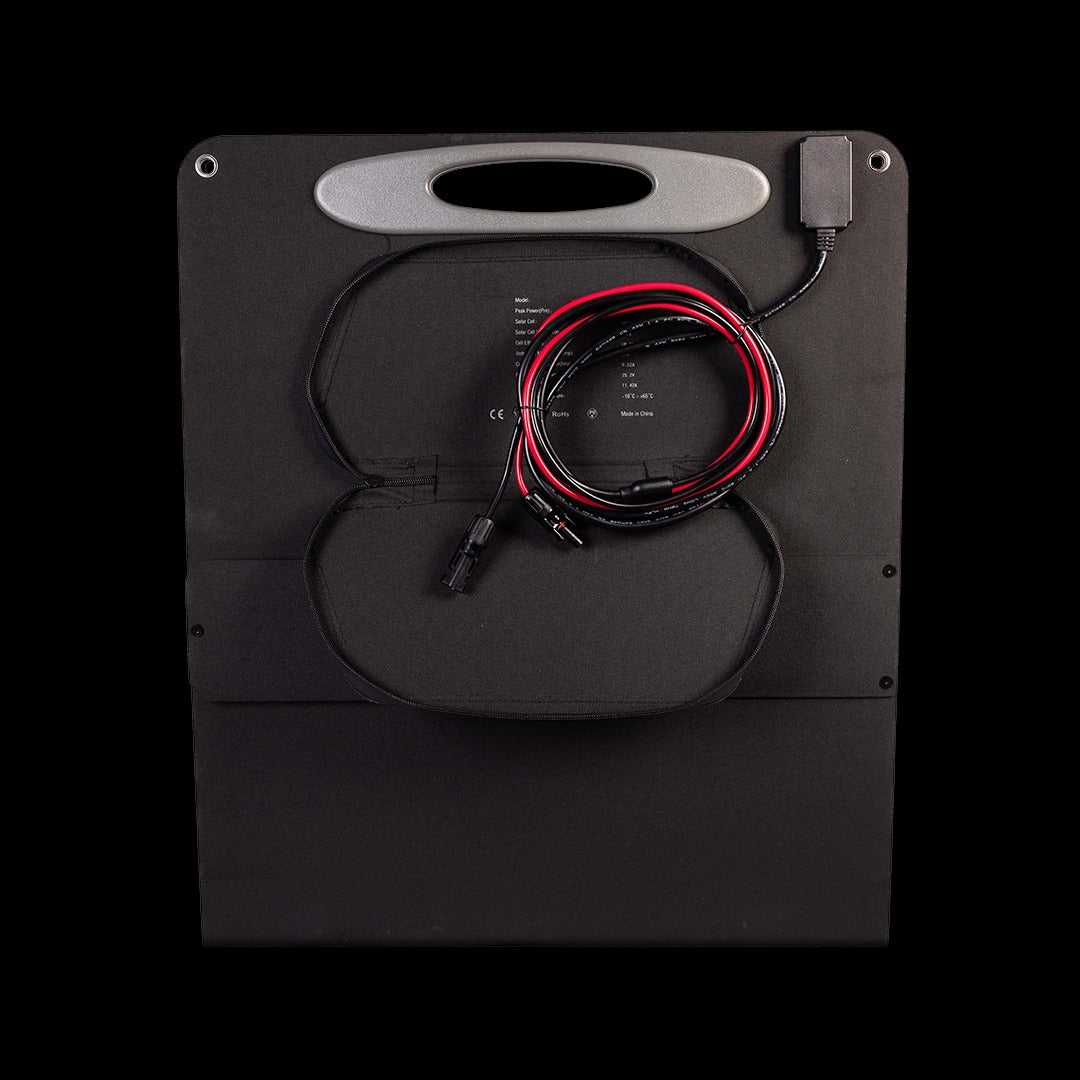

  2. Pull the MC4 cable from the zipper pouch.
  3. Connect the MC4 end to the MC4–XT60 solar charging cable.
  4. Plug the XT60 connector into the port labeled "INPUT" on the Grid Doctor battery.
  5. Charging begins automatically and stops when the battery is full.
